The 8-Channel Optical Power Meter Is Displayed Simultaneously
The eight-channel optical power meter with display is a high-performance optical test instrument that combines multi-channel measurement capabilities and an intuitive display to make optical power measurement more convenient and efficient.
Product characteristics
Multi-channel measurement: With 8 independent test channels, the optical power of multiple optical signals can be measured simultaneously, which greatly improves the test efficiency.
High-precision measurement: The use of advanced signal processing and software technology to achieve high-precision optical power measurement to meet the strict requirements of scientific research, production and other fields.
Wide dynamic range: can cover a wide range of optical power measurement, suitable for different intensity of optical signal measurement.
Intuitive display: Equipped with a large screen high-resolution LCD display, can simultaneously display the wavelength of eight channels, measurement values and related functional information, convenient for users to view and operate.

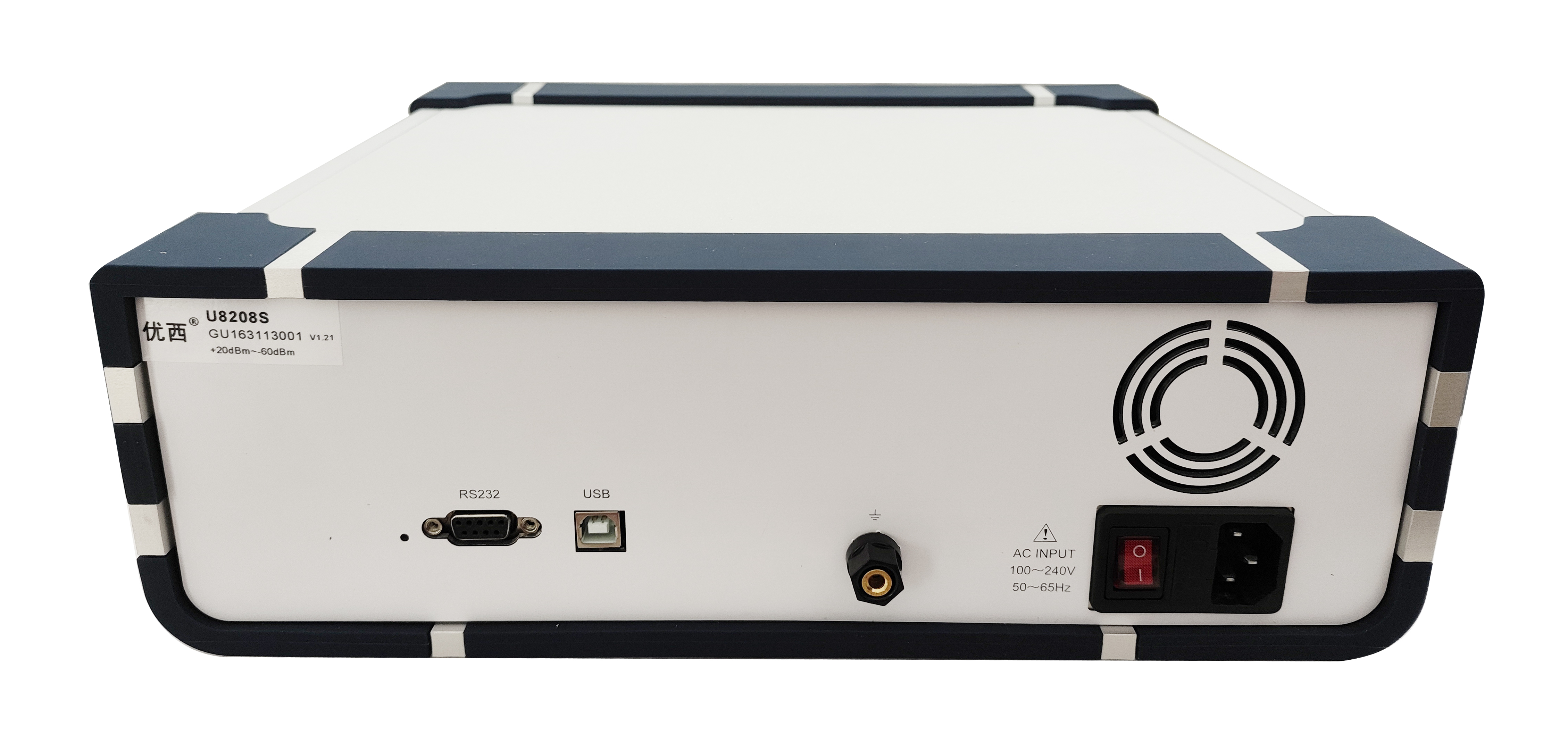

A variety of interfaces: usually equipped with RS-232, USB and other interfaces, you can easily connect with other test equipment or computers, to achieve remote data transmission and automatic processing.
Technical specification
| Model # | U8201 | U8202 | U8204 | U820XH |
| Number of Channels | 1 | 2 | 4 | X |
| Power Range | +10 ~ -65dBm | +25 ~ -50dBm |
| Wavelength Range | 850 ~ 1700 nm |
| Calibration Wavelength | 850/980/1310/1490/1550/1610 nm |
| Application Fiber Type | Standard SM and MM up to 62.5 um core size |
| Absolute Uncertainty (accuracy) at reference condition | ± 4% (1200 nm ~ 1610 nm) |
| Relative Uncertainty (accuracy) at reference condition | ＜ 0.02 dB Typical |
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm) |
| Return Loss | ＞ 40 dB |
| Operation Temperature | 0 ～ +40℃ |
| Storage Temperature | -30 ～ +80℃ |
| Recalibration Period | 2 years |
| Dimensions | 245 mm W, 105 mm H, 320 mm D |
| Weight | 2.0 kg
|
Application scenario
Eight-channel optical power meter with display screen is widely used in optical fiber communication, optical network testing, optical device research and development and other fields. It is especially suitable for scenarios where the power of multiple optical channels needs to be measured simultaneously, such as WDM systems, optical amplifier testing, and fiber link monitoring.
Purchase suggestion
Before purchasing, you need to clarify your measurement needs, including wavelength range, power range, accuracy requirements, channel number, etc.
