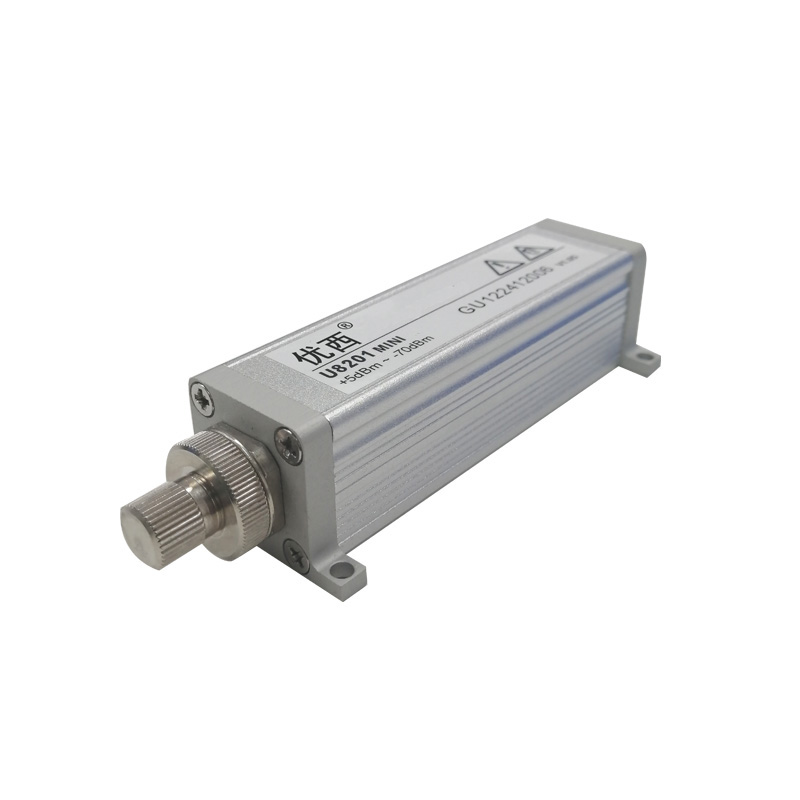

Single Channel Mini Optical Power Meter Has Excellent Performance And Small Size

Name: Single Channel Mini Optical Power Meter Has Excellent Performance And Small Size
Brand: YOUCII
Price: 1 USD

Brand Name : YOUCII

Model Number : U8201MINI

Certification : CU,IOS

Place of Origin : China

MOQ : 1pcs

Price : negotiate a price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, T/T

Supply Ability : 20 pcs+per month

Delivery Time : 20 work days

Packaging Details : Carton

Sensor Element : InGaAs

Application Fiber Type : Standard SM and MM up to 62.5 um core size

Return Loss : ＞ 40 dB

Communication Interface : RS232

Operation Temperature : 0 ~ +40℃

Weight : 0.5KG

Contact Now

Single Channel Mini Optical Power Meter Has Excellent Performance And Small Size

The UC8201MINI optical power meter module can be used for high-precision WD-division multiplexing DWDM components, optical waveguide grating array AWG components, planar optical waveguide PLC components, WSS, OPM, DPSK, optical amplifiers EDFA and other general optical fiber optical measurement applications. Compared with other models of power meters, UC8201MINI has the characteristics of compact shape, especially suitable for assembly into multi-channel optical power meter sampling systems.

Should
1.WDM, GFF, AWG, PLC device test
2. Insert loss, return loss measurement
3. Optical fiber sensor, optical fiber cable test
4.Polarization mode dispersion PMD and polarization dependent loss PDL measurement
5.Optical fiber, communication R&D laboratory test

peculiarity
1.Fast startup and high measurement accuracy.
2.Wide dynamic power measurement range.

specification

Model	U8201MINI
Sensor Element	InGaAs
Wavelength Range	850 ~ 1700 nm
Calibration wavelength	850/980/1310/1490/1550/1610 nm
Power Range (dBm)	+7 ~ -70 dBm
Power sampling period(Rate)	1 ms(1KHz)
Application Fiber Type	Standard SM and MM up to 62.5 um core size
optical Input Interface	FC/PC or FC/APC
Absolute Uncertainty (accuracy) at reference condition	± 4% (1200 nm ~ 1610 nm)
Relative Uncertainty (accuracy) at reference condition	＜ 0.02 dB Typical
Linearity (power)	≤ ± 0.06 dB (1200 nm ~ 1610 nm, 5~ -50dBm)
Return Loss	＞ 40 dB
Communication Interface	RS232
Calibration period	2 years
Operation Temperature	0 ~ +40℃
Storage Temperature	-30 ~ +80℃
Dimensions	37 mm W, 25 mm H, 115 mm D
Weight	0.5 kg

Module description

Front end Rear-end
